Token protocol

Communicating parameter state with the host.

On this page

• An Introduction to Tokens
• Basic Token Operation

An Introduction to Tokens

One way in which a plug-in can communicate with the "outside world" is through Shared Data Services, also known as the Token System. This is a mechanism that allows Pro Tools to share parameter information with external hardware and software modules. While the AAX SDK only uses the Token System indirectly, knowing how it works will provide a good understanding of how linked parameters should operate.

Entities

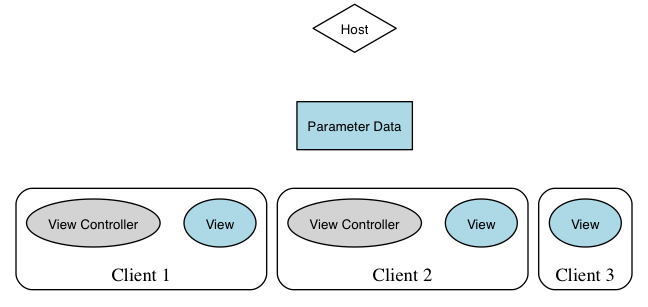

Entities in an example system

Touch

Touch tokens inform the system of user interaction with a parameter. When a parameter is being touched the system knows to stop sending automation data to the plug-in and just use the SET value of the parameter. It is also used to tell the system when to start/stop recording new automation data.

In AAX, the touch message is sent to the host by AAX_IAutomationDelegate::PostTouchRequest(). The most common way to call this method is via the following methods:

class AAX_IEffectParameters
{
    virtual AAX_Result TouchParameter ( AAX_CParamID inParameterID );
    virtual AAX_Result ReleaseParameter ( AAX_CParamID inParameterID );
};

class AAX_IParameter
{
    virtual void Touch ();
    virtual void Release ();
};

However, AAX plug-ins will rarely need to call these methods directly since the AAX_CParameter and AAX_CEffectParameters implementations will automatically handle parameter touch and release tokens whenever a new value is set on the parameter by the plug-in.

Other clients besides the plug-in may touch a parameter. Since the TOUCH token can come from a control surface the touch state will actually come back to the plug-in via:

class AAX_IEffectParameters
{
    virtual AAX_Result UpdateParameterTouch ( AAX_CParamID iParameterID, AAX_CBoolean iTouchState );
};

This method is mainly important for linked parameters.

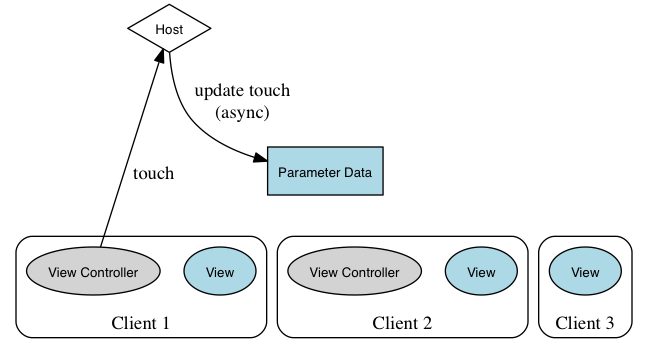

Touch request from a view controller, with resulting async touch update

Set

SET tokens can come from many different locations: the plug-in GUI, a control surface, loading a chunk or automation playback. Eventually the value of a SET token comes into the plug-in and that's when the internal value of the parameter gets updated. In AAX the SET token will be sent as a result of calling the following method:

class AAX_CParemeter<T>
{
    void SetValue ( T newValue );
};

which will be called from many other supporting methods:

class AAX_CParameter<T>
{
    bool SetValueWithBool ( bool value );
    bool SetValueWithInt32 ( int32_t value );
    bool SetValueWithFloat ( float value );
    bool SetValueWithDouble ( double value );
    void SetToDefaultValue ();
    void SetNormalizedValue ( double normalizedNewValue );
    bool SetValueFromString ( const AAX_CString & newValueString );
};

When a SET token enters the system from the GUI, control surface or automation the value comes bak to the plug-in via the following method:

class AAX_CEffectParameters
{
    AAX_Result UpdateParameterNormalizedValue ( AAX_CParamID iParameterID, double aValue, AAX_EUpdateSource inSource);
};

At this point the internal contents of the plug-in are set.

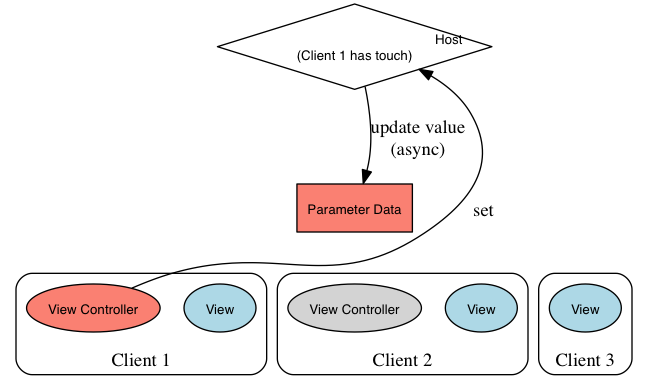

Set token asynchronously changes state of the parameter data

Update

An update token is generated when the internal value of a parameter has been set. GUIs and control surfaces listen for UPDATE tokens to update the displayed values. In AAX the UPDATE token is sent by calling the following method:

class AAX_CParameter<T>
{
    void UpdateNormalizedValue ( double newNormalizedValue );
};

All views of the parameter are then asynchronously notified that the value has changed. The plug-in GUI is notified via a call to AAX_IEffectGUI::ParameterUpdated().

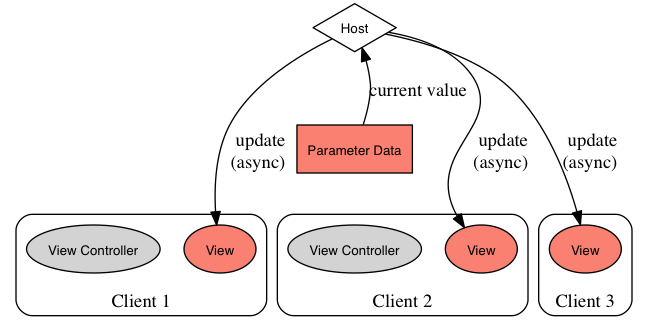

Update token triggers async updates to all views

Basic Token Operation

Here's how the system works for a standard update:

User Editing

1. User clicks on a parameter in the GUI or grabs a parameter on the controls surface. A TOUCH token should be sent at this point.
2. The user changes the parameter from the GUI or controls surface. A SET token should be sent at this point.
3. The SET token goes into the system and comes back to the plugin via UpdateParameterNormalizedValue().
4. The plug-in updates it's internal state and sends an UPDATE token.
5. Repeat steps 2-4 while changing the parameter.
6. The user lets go of the GUI or controls surface. A TOUCH token with the released state should be sent.

Automation Playback

1. The SET token comes from the automation system and enters the plugin via UpdateParameterNormalizedValue().
2. The plug-in updates it's internal state and sends an UPDATE token.
3. Repeat steps 1-2 while playing back automation.

Chunk Restoring

1. Plug-in loads the chunk.
2. The plug-in sets every parameters value. Another thing to note is that the
3. SetValue() method also contains Touch() and Release() calls. So, while setting every parameter there is a combination of TOUCH and SET tokens sent to the system.
4. The SET tokens comes back to the plugin via UpdateParameterNormalizedValue().
5. The plug-in updates it's internal state and sends out UPDATE tokens.

for more information see Basic parameter update sequences
